Advanced Typography - Task 1: Exercises 1 & 2

05.04.2023 - 09.05.2023 / Week 1 - Week 5
Lim Rui Ying / 0358986
Advanced Typography / Bachelors of Design (Hons) in Creative Media
Task 1: Exercises 1 & 2

LIST

Task 1

Exercise 1: Typographic Systems

Exercise 2: Type & Play

Feedback

Reflection

LECTURES

Lecture 1: AdTypo_1_Typographic Systems

Typographical organisation is complex because the elements are dependent on communication to function. Additional criteria such as hierarchy, order of reading, legibility, and contrast are also to be considered.

The typographic systems are related to shape grammars that have a set of rules and provide a sense of purpose that focuses and directs the decision-making.

Shape grammar (architect term) is a set of shape rules that apply in a step-by-step way to generate a set, or language, of designs.

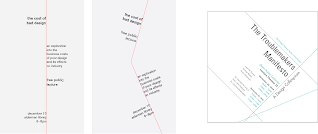

Axial System: All elements are organised to the left or right of a single axis.

Radial System: All elements are extended from a point of focus. It may consist of multiple points of focus.

Dilatational System: All elements expand from a central point in a circular manner.

Random System: Elements appear to have no specific pattern or relationship.

Grid System: A system of vertical and horizontal divisions.

Transitional System: An informal system of layered banding.

Modular System: A series of non-objective elements that are constructed as standardised units.

Bilateral System: All text is arranged symmetrically on a single axis.

Lecture 2: AdTypo_2_Typographic Composition

Typography encompasses two aspects: the creation of letters and the arrangement of a large amount of text within a given space. Typographic composition refers specifically to the latter, involving the arrangement of textual information within a given space. There are several ways to approach typographic composition, including the following:

Principles of Design Composition

Composition principles involve combining and arranging elements to create a visual impact. Examples include emphasis, isolation, repetition, symmetry, asymmetry, alignment, and perspective. However, when applied to typographic layouts or compositions, these principles can feel ambiguous and more relevant to imagery.

Applying these principles to real-life content such as textual information or images on a page or screen can feel disparate. Emphasis, symmetry, and asymmetry are easily translatable, but principles like repetition and perspective are more challenging to translate into typographic composition.

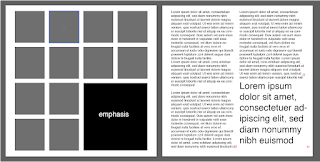

Emphasis in typographic composition

The Rule of Thirds

The Rule of Thirds is a photographic guide to composition, it basically suggests that a frame (space) can be divided into 3 columns and 3 rows. The intersecting lines are used as a guide to place the points of interest, within the given space. However, this element of composition is rarely used.

The Rule of Thirds in typographic composition

Typographic Systems
The 8 systems used in the typographic composition include the Grid System (or Raster Systeme), which is the most pragmatic and widely used. It was further enhanced by the Swiss (Modernist) style of Typography, led by Josef Muller Brockmann, Jan Tschichold, Max Bill and others.

The grid system continues to remain popular due to its versatility and modular nature, allowing an infinite number of adaptations. Our readability prefers ordered and organised compositions over those that are chaotic.

Grid system

In the modernist era of Typography, younger designers challenged the ordered approach and explored chaos, randomness, and asymmetry in typographic systems. Below are some artworks from the proponents of this approach:

Paula Scher (left); Jonathan Barnbrook (middle); David Carson (right)

Other models/systems
Environmental Grid

This system is based on the exploration of an existing structure or numerous structures combined. An extraction of crucial lines both curved and straight is formed. The designer then organizes his information around this super-structure, which includes non-objective elements to create a unique and exciting mixture of texture and visual stimuli.

Example of the environmental grid by Brenda McMannus,
from the book Typographic Form and Communication, pp211

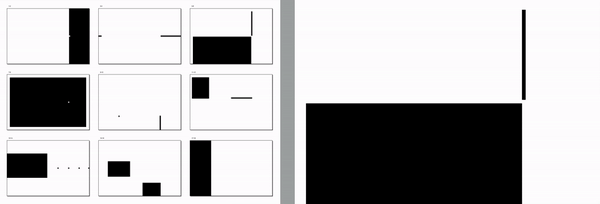

Form and Movement

This system is based on the exploration of an existing Grid System. It encourages students to experiment with different compositions and explore the connection between each composition, while also viewing the layout as a dynamic composition with a sense of movement.

Form and movement

Lecture 3: AdTypo_3_Context & Creativity

This lecture is about how the ancient scripts are developed into a particular modern language and why is it important to learn the context of handwritten scripts. By understanding the development of handwritten scripts, we can learn about the context of a particular civilization.

Handwriting

We study handwriting because the first mechanically produced letterforms were designed to directly imitate handwriting. Handwriting would become the basis or standard that for form, spacing and conventions mechanical type would try and mimic.

Development of Western handwriting

Cuneiform → Hieroglyphics → Early Greek (Phoenician letters) → Roman Uncials → English Half Uncials → Emperor Charlemagne (standardization of the handwriting style: Carolingian Minuscule) → Blackletter → The Italian Renaissance → Movable Type

The movable type (11 C. – 14 C.) was introduced in 1000-1100 CE. This innovation was pioneered in China but achieved in Korea (Diamond Sutra). In the late 1300-1399 C.E., several decades before the earliest printing in Europe (Guttenberg’s bible 1439), the Koreans establish a foundry to cast movable type in bronze.

Movable type

Development of Eastern Handwriting

The digital revolution led to the West digitizing historical creations and selling them through type foundries. This recognition of the value of historical letterforms is admirable. However, colonization of the East by the West resulted in a halt or stunting of heritage, cultural practices, literature, arts and crafts, languages and scripts.

Southern Asia

Indus Valley Civilization (IVC) script (3500-2000 BCE), is the oldest writing found in the ‘Indian’.

Indus Valley Civilization script

The Brahmi script (450–350 BCE) is the earliest writing system developed in India after the Indus script. It is one of the most influential writing systems; all modern Indian scripts and several hundred scripts found in Southeast and East Asia are derived from Brahmi.

Brahmi script

Southeast Asia

The oldest writing systems present in Southeast Asia were Indian scripts. The most important is Pallava (or Pallawa in Malay), a South Indian script originally used for writing Sanskrit and Tamil.

Pra-nagari, an early form of the Nagari script, was used in India for writing Sanskrit.
Kawi, Indonesia's most important historical script is based on Nagari, but indigenous to Java. Kawi was used for contacting other kingdoms. It was so widespread and became the basis of other scripts in both Indonesia and the Philippines.

Incung, the original writing system from Kerinci, comes from a South Sumatran grouping of scripts known as Rencong.

Incung

Other scripts that are assimilated from Indonesian communities into Peninsula Malay Communities: Rajang script, Batak script, Bugis script (Lontara), and Javanese script.

Jawi is the Arabic-based alphabet that was introduced along with Islam. When those traders engaged in missionary work, they would have taught Jawi to illiterate people, allowing it to spread among the upper and middle-class in trading ports. However, it took some time for Jawi to replace other scripts.

In modern Malaysia, Jawi is of greater importance because it's the script used for all our famous works of literature. Unlike Indonesia, Malaysia does not have a wealth of pre-Jawi inscriptions, leading some to falsely claim that Jawi is "tulisan asal Melayu".

Programmers and Type Design

Software giants like Google are employing numerous Asian programmers and designers to create an increasing number of vernacular and multi-script typefaces (a term coined by Muthu Nedumaran). These typefaces are aimed at facilitating communication in both vernacular and Latin scripts.

Baloo, a multi-script typeface by Ek Type

Local Movements and Individuals

In Malaysia, murasu.com is spear-headed by programmer and typographer Muthu Nedumaran. The programming language needed to encode the different types of vernacular writing systems was cracked by Muthu. The system is now used in mobile phones and desktops.

Huruf, a local group of graphic designers interested in the localized lettering of Latin and vernacular letters painted or inscribed on walls and signages are among the more prominent organizations digitizing and revitalizing typefaces in Malaysia.

Ek Type and Indian Type Foundry are organizations that have done groundbreaking work with the development of vernacular typefaces in India.

Lecture 4: AdTypo_4_Designing Type

Xavier Dupré (2007) in the introduction of his typeface Malaga suggested two reasons for designing a typeface:

type design carries a social responsibility so one must continue to improve its legibility.
type design is a form of artistic expression.

Frutiger is a sans serif typeface designed by the Swiss type designer Adrian Frutiger in 1968 specifically for the newly built Charles de Gaulle International Airport in France. He tested with unfocused letters to see which letterforms could still be identified in poor light conditions or when the reader was moving quickly past the sign.

Frutiger

Verdana is a specifically designed typeface for the screen by Matthew Carter, commissioned by Microsoft. As it is a typeface for the screen, hinting is essential to enhance the readability on the screen.

Verdana

Hinting of Verdana

Bell Centennial typeface is commissioned by AT&T which wanted a new typeface for use in their telephone directories. Ink traps are designed in the typeface to prevent ink spread when printing on low-quality paper at high speeds.

Bell Centennial

Comparison - font vs printed

Johnston Sans (previously known as Underground typeface) is created by Edward Johnston for the commission of the posters and signage of London's Underground Railway. He combined classical Roman proportions with humanist warmth.

London underground exit sign

Eric Gill, Johnston's former student, created the Gill Sans typeface which is heavily based on Johnston's work.

General Process of Type Design

1. Research

- to understand the type history, type anatomy, type conventions, terminologies, side-bearing, metrics, hinting, etc
- to determine the type’s purpose
- examine existing fonts that are presently being used for inspiration /ideas /reference /context /usage pattern /etc.

2. Sketching

- both traditional and digital tool sets are acceptable for sketching, depending on the designer's choice

3. Digitization

- software: Adobe Illustrator, FontLab, Glyphs App

- it is important to examine both the form and counter form of the letters to ensure the readability of the typeface

4. Testing

- to refine and correct the aspects of the typeface
- prototyping is a part of it and it leads to important feedback

5. Deploy

- deploying a typeface doesn't mark the end of revision as unforeseen issues may surface after post-prototype and testing phases

Typeface Construction

The use of grids (with circular forms) can facilitate the construction of letterforms. For example, Roman Capital is mostly constructed in a grid that consists of a square, and inside it a circle that just touches the lines of the square in four places.

Construction and Considerations

Depending on their form and construction, the 26 characters of the alphabet can be arranged into groups, whereby a distinction is made between a group for the capitals and a group for lowercase letters.

Classification according to form and construction

Visual correction

- the extrusion of curved (and protruding) forms past the baseline and cap line (overshoot)

- the distance between letters should appear the same

Circles and triangles tend to appear slightly larger than squares of the same height

There are many more approaches and considerations while constructing the letterforms.

Lecture 5: AdTypo_5_Perception & Organisation

Perception is “the way in which something is regarded, understood, or interpreted”. Perception in typography deals with the visual navigation and interpretation of the reader via contrast, form and organisation of the content.

Contrast

Carl Dair's Seven Typographical Contrast:

1. Contrast of size: provides a point to which the reader’s attention is drawn. The most common use of size is in making a title or heading noticeably bigger than the body text.

Contrast of size - Awareness posters by Amnesty International;
The big text will first draw the reader's attention before the small text.

Contrast of size - Do Something Loving poster by Xtian Miller (Source: Behance)

2. Contrast of weight: describes how bold type can stand out in the middle of the lighter type of the same style. Using rules, spots, and squares also provides a “heavy area” for a powerful point of visual attraction or emphasis.

Contrast of weight (Source: Venngage)

3. Contrast of form: the distinction between a capital letter and its lowercase equivalent, or a Roman letter and its italic variant, condensed and expanded versions of the typeface are also included under the contrast of form.

Contrast of form (Source [right]: Fashion Gone Rogue)

4. Contrast of structure: the different letterforms of different kinds of typefaces. For example, a monoline sans serif and a traditional serif, or an italic and a blackletter.

Contrast of structure - [left] Poster by Fabian Fohrer (Source: muchwow // graphics);
[right] Poster by Beatriz Rocha (Source: Behance)

5. Contrast of texture: by putting together the contrasts of size, weight, form, and structure, and applying them to a block of text on a page. Texture refers to the way the lines of type look as a whole up close and from a distance.

Contrast of texture - [left] Yale School of Architecture Poster by Yve Ludwig;
[right] Poster by Isometric Studio

6. Contrast of direction: the opposition between vertical and horizontal, and the angles in between.

Contrast of direction - [left] Poster by Benjamin Kowalski;
[right] Typography Quote of the Day: Frutiger on White Space by Douglas Bonneville (Source: BonFX)

7. Contrast of colour: The use of colour is suggested that a second colour is often less emphatic in values than plain black on white.

Contrast of colour

Typographical Contrast by Carl Dair (left) and Rudi Ruegg (right)

Form

Form refers to the overall look and feel of the elements that make up the typographic composition. It is the part that plays a role in visual impact and first impressions. Displaying type as a form provides a sense of letterforms’ unique characteristics and abstract presentation.

Form

Form - Gill Sans Typography Poster Design by NIQUE PRASERTWIT (Source Behance)

When a typeface is perceived as a form, it no longer reads as a letter because it has been manipulated by distortion, texture and enlargement, and has been extruded into a space.

Form - [left] "Where are we now" poster by Mary Universe (Source: Behance);
[right] Brand identity for Blanc! Festival by Pràctica (Source: It's Nice That)

Organisation

Gestalt is a German word meaning the way a thing has been “placed” or “put together”. Gestalt theory emphasizes that the whole of anything is greater than its parts.

Gestalt Laws (Principles) by Max Wertheimer:

Gestalt Laws (Source: Verywell Mind)

1. Law of Similarity: states that elements that are similar to each other tend to be perceived as a unified group (eg. grouping of colour, orientation, size, or indeed motion).

2. Law of Proximity: that states elements that are close together tend to be perceived as a unified group.

3. Law of Closure: refers to the mind’s tendency to see complete figures or forms even if a picture is incomplete, partially hidden by other objects, or if part of the information needed to make a complete picture in our minds is missing.

Law of Closure (Source: Nicola Vargiu)

4. Law of Continuation: holds that humans tend to perceive each of two or more objects as a different, singular, and uninterrupted object even when they intersect.

Law of Continuation (Source: Nicola Vargiu)

5. Law of Symmetry

6. Law of Simplicity (Praganz), etc.

TO THE TOP ↑

INSTRUCTIONS

TASK 1: Exercises 1 - Typographic Systems

We were tasked to create a layout for each typographic system with the given content. The EIGHT typographic systems are as follows: Axial, Radial, Dilatational, Random, Grid, Modular and Transitional.

Content to be used:

The Design School, Taylor’s University

All Ripped Up: Punk Influences on Design

or

The ABCs of Bauhaus Design Theory

or

Russian Constructivism and Graphic Design

Open Public Lectures:

June 24, 2021

Lew Pik Svonn, 9AM-10AM

Ezrena Mohd., 10AM-11AM

Suzy Sulaiman, 11AM-12PM

June 25, 2021

Lim Whay Yin, 9AM-10AM

Fahmi Reza, 10AM-11AM

Manish Acharia, 11AM-12PM

Lecture Theatre 12

Task requirements:

- Use Adobe InDesign only

- Size: 200 x 200 mm

- Colours: black and one other colour

- Limited graphical elements (lines, dots, etc)

WEEK 1

Practical

In week 1 class, we were asked to give a try on creating layouts for the Axial system. I made attempts at the basic horizontal axis and diagonal axis, with wide and narrow columns.

Fig. 1.0 Axial - practical attempts, Week 1 (5/4/2023)

Layouts exploration

AXIAL

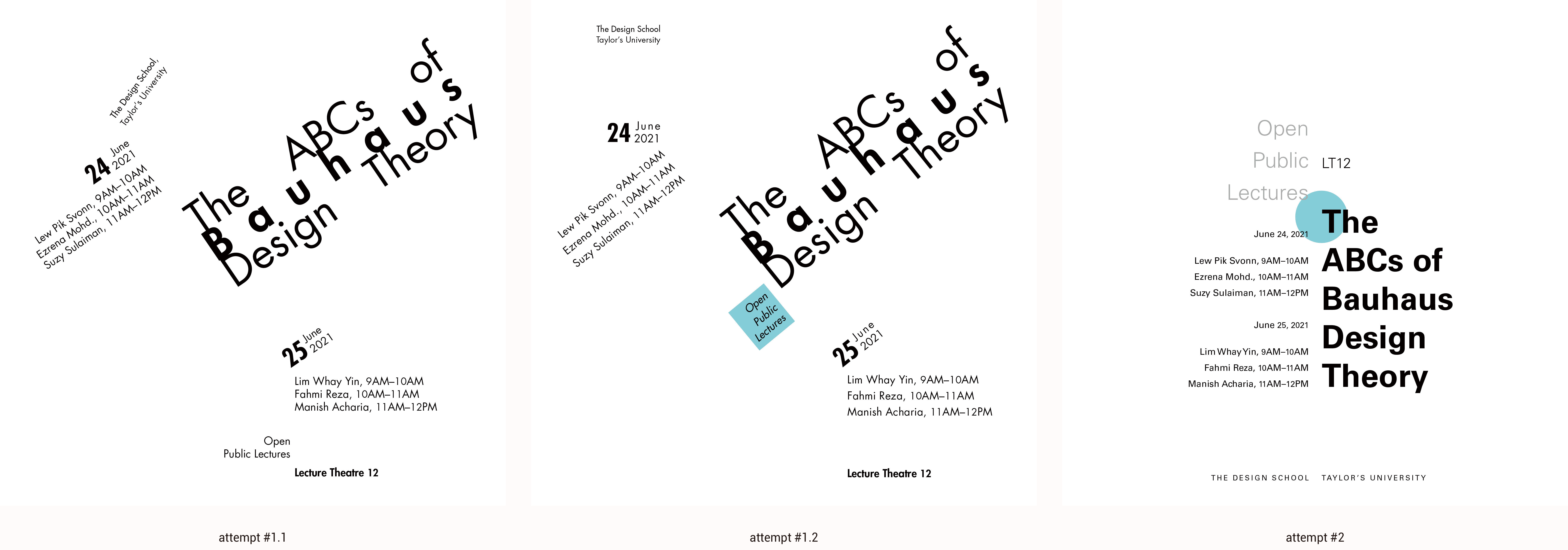

Fig. 1.1 Axial attempts, Week 1 (11/4/2023)

I first made attempts using an irregular axis for the Axial system. The irregular axis in attempt #1.1 (Fig. 1.1 left) is made up of two diagonal axes and a horizontal axis. I noticed the upper diagonal axis is weird when aligning the text. So, I rotated it to be horizontal in attempt #1.2 (Fig. 1.1 middle) and arranged the text at the angle of the axis. In attempt #2 (Fig. 1.1 right), I played around with the font weights and sizes but applied the basic horizontal axis.

Font used:

Left & middle: Futura Std Book, Bold Condensed, Heavy

Right: Univers LT Std 45 Light, 55 Roman, 65 Bold

RADIAL

Fig. 1.2 Radial attempts, Week 1 (11/4/2023)

I considered attempt #1 (Fig. 1.2 left) as a failed attempt as I did not extend each line of text from the focus points according to grids and guides. Although there are compositions with unaligned lines of text from a particular focus point, I believe that every line should be extended from each focus point where it belongs to. In attempt #2 (Fig. 1.2 right), I create guidelines from the centre point of a circle to ensure each line of text is extended exactly from the focus point. The composition of attempt #2 is quite interesting, in which the main content is extended from the focus point at the bottom left and pointed to the top right with the remaining content, forming the shape of an arrow.

Font used:

Left: Univers ST Ltd 45 Light, 55 Roman, 57 Condensed, 65 Bold, 75 Black

Right: Futura Std Book, Book Oblique, Medium, Heavy

DILATATIONAL

Fig. 1.3 Dilatational attempts, Week 1 (11/4/2023)

I have curvilinear lines of text in my first attempt (Fig. 1.3 left), with the title passing through. In attempts #2.1 and #2.2 (Fig. 1.3 middle & right), I made the word "Bauhaus" very large to be extended across the page and other content to pass through or extend for the alphabets in the word "Bauhaus". The title in attempt #2.1 passes through the alphabet "u" while the title in attempt #2.2 passes through the alphabet "h". I found that the crossover in attempt #2.2 is smoother than in attempt #2.1 so I choose attempt #2.2 as my final.

Font used:

Left: Bodoni Std Roman, Book, Bold

Middle & right: Futura Std Light, Book, Medium, Heavy

RANDOM

Fig. 1.4 Random attempts, Week 1 (11/4/2023)

In both attempts, I played around with different fonts from different typefaces. It was quite fun to use these fonts to mix together and overlap each other. Attempt #1 (Fig. 1.4 left) is too compact at the top of the composition. Thus, I developed another composition with a more dynamic organisation in attempt #2 (Fig. 1.4 right).

Font used:

Left: Adobe Caslon Pro, Futura Std, ITC Garamond Std, Univers LT Std

Right: Bembo Std, Bodoni Std, Futura Std, Gill Sans Std, ITC Garamond Std, ITC New Baskerville Std, Serifa Std, Univers LT Std

GRID

Fig. 1.5 Grid attempts, Week 1 (11/4/2023)

The layout of attempt #1 (Fig. 1.5 left) is quite boring. I created another layout (attempt #2, Fig. 1.5 right) with the title at the bottom and other content above the title. I place the blue dot at the top left for viewers to look at the details of the public lectures after seeing the huge title.

Font used:

Left: Gill Sans Std Light, Regular, Bold, Bold Italic, Bold Condensed

Right: ITC Garamond Light, Light Narrow, Ligth Narrow Italic, Book, Bold

TRANSITIONAL

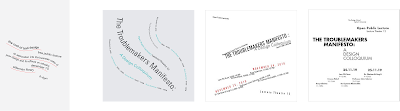

Fig. 1.6 Transitional attempts, Week 1 (11/4/2023)

Text in attempts #1.1 and #1.2 (Fig. 1.6 left & middle) is layered in horizontal lines but text in attempt #1.2 is in a diagonal direction. I made attempts in different directions to experiment with the balance between the text and white space. Attempt #2 (Fig. 1.6 right) has way lines of text with wavy graphical elements. However, the graphical elements are too much in the layout.

Font used:

Left & middle: Gill Sans Std Light, Regular, Italic, Shadowed, Bold, Bold Condensed

Right: Bembo Std Regular, Semibold, Semibold Italic, Bold, Bold Italic

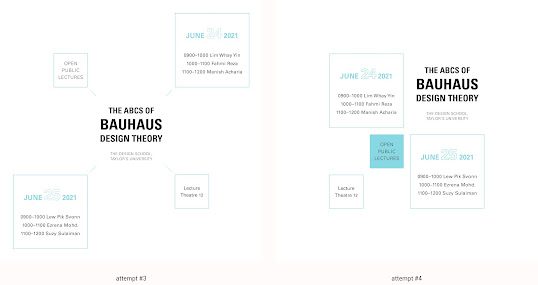

MODULAR

Fig. 1.7 Modular attempts, Week 1 (11/4/2023)

I was quite struggling with the modular system as each content has to fit in the unit(s) of the box, which is a bit restricted for me. Both attempts have units of 5 x 5. In attempt #2 (Fig. 1.7 right), "Lecture Theatre 12" was missing and the word "design theory" exceeded the box. I have to explore more layouts to create a better one.

Font used:

Left: ITC New Baskerville Std Roman, Bold

Right: Futura Std Light, Book, Heavy

BILATERAL

Fig. 1.8 Bilateral attempts, Week 1 (11/4/2023)

Attempt #1 (Fig. 1.8 left) has a central vertical axis while attempts #2.1 and #2.2 (Fig. 1.8 middle & right) have two vertical axes. However, we were told to adhere to the rules of the bilateral system of having just one axis after the feedback. So I have to create a new layout for the bilateral system.

Font used:

Left: ITC Garamond Std Book, Book Narrow, Bold, Bold Narrow

Middle & right: Bodoni Std Book, Roman, Bold

WEEK 2

Revised layouts after feedback

RADIAL

Fig. 2.1 Radial - revised, Week 2 (13/4/2023)

I made amendments to the radial system based on Mr Vinod's suggestion. I made the curve smoother and move away the dot from the corner to the beginning of the text "Open Public Lectures", but changed it to an outlined dot. I also added a line connect to the text "Lecture Theatre 12" to balance the white space between the other two lines.

Font used: Futura Std Book, Book Oblique, Medium, Heavy

TRANSITIONAL

Fig. 2.2 Transitional - revised, Week 2 (13/4/2023)

I had too many graphical elements in my second attempt transitional system (Fig.1.6 right) so I used attempt #1.1 (Fig. 1.6 left) as the revised version of the transitional system. I tried a few placements of the content to figure out the balance between the content and white space and this is the final outcome.

Font used: Gill Sans Std Light, Regular, Italic, Shadowed, Bold, Bold Condensed

MODULAR

Fig. 2.3 Modular - revised, Week 2 (13/4/2023)

I found the modular system quite difficult to create a balance and dynamic layout. Thus, I tried arranging plenty of layouts and I came out with these two acceptable layouts. Both layouts consist of 6 x 6 units. Attempt #4 (Fig. 2.3 right) seems to be more balance so I use it as the final modular system.

Font used:

Left: Univers LT Std 45 Light, 55 Roman, 65 Bold, 67 Bold Condensed, 75 Black

Right: Univers LT Std 45 Light, 55 Roman, 65 Bold, 67 Bold Condensed

BILATERAL

Fig. 2.4 Bilateral - revised, Week 2 (13/4/2023)

I created a typical bilateral system with a central axis and balance content on both sides of the axis. To let the layout looks more dynamic, I apply colour and dot to the dates.

Font used: ITC New Baskerville Std Roman, Bold

Final Task 1: Exercise 1 - Typographic Systems

Fig. 3.1 Final Axial System - JPEG, Week 2 (13/4/2023)

Fig. 3.2 Final Radial System - JPEG, Week 2 (13/4/2023)

Fig. 3.3 Final Dilatational System - JPEG, Week 2 (13/4/2023)

Fig. 3.4 Final Random System - JPEG, Week 2 (13/4/2023)

Fig. 3.5 Final Grid System - JPEG, Week 2 (13/4/2023)

Fig. 3.6 Final Transitional System - JPEG, Week 2 (13/4/2023)

Fig. 3.7 Final Modular System - JPEG, Week (13/4/2023)

Fig. 3.8 Final Bilateral System - JPEG, Week 2 (13/4/2023)

Fig. 3.9 Final Task 1 - Exercise 1: Typographic Sytems - PDF, Week 2 (13/4/2023)

Fig. 3.10 Final Task 1 - Exercise 1: Typographic Sytems (grids and guides) - PDF, Week 2 (13/4/2023)

TASK 1: Exercises 2 - Type & Play

Part 1: Finding Type

WEEK 2

We were tasked to select an image of a man-made object (chair, glass, etc.) or structure (buildings), or something from nature (Human, landscape, leaf, plant, bush, clouds, hill, river, etc). Avoid selecting an image that contains too many different elements. Extract at least 5 letterforms from the image and form a word if it is possible.

While browsing through my photo album, I stumbled upon a picture of foam on a car window that was captured during my first experience at a drive-thru car wash. I was intrigued by the unique shapes formed by the foam so I decided to extract the letterforms from them.

Fig. 4.1 Chosen object - foam, Week 2 (16/4/2023)

Extraction of letterforms

To obtain the letterforms that I had recognised, I used the Pen tool in Adobe Illustrator to trace the outline of the shapes. The extracted letters include lowercase letters i, t, c and r, and uppercase letters T, C, R, H, F and E.

Fig. 4.2 Letterforms tracing progression, Week 2 (16/4/2023)

Fig. 4.3 Extraction of letterforms, Week 2 (16/4/2023)

The selected letterforms are the uppercase letters C, R, H, F and E. I resized the letterforms and placed them on guides.

Fig. 4.4 Letterforms on guides, Week 2 (16/4/2023)

Reference font

I selected Gill Sans Std Bold Condensed as my reference font. I intended to create a narrow font that maintains consistency in the width of both horizontal and vertical strokes.

Fig. 4.5 Reference font and extracted letterforms overlapped, Week 2 (16/4/2023)

Refinement of letterforms

Refinement attempt #1

In 1st refinement, I reduced the complexity of the letterforms by simplifying the anchor points.

Fig. 4.6 1st refinement - simplifying anchor points, Week 2 (16/4/2023)

Fig. 4.7 Comparison between original letterforms and 1st refinement, Week 2 (16/4/2023)

During the second stage of refinement, I continued to simplify the letterforms even further. In the third refinement, I adjusted the strokes of each letterform based on the width and height of the reference font.

Fig. 4.8 3rd refinement - development of letters T, C and R, Week 2 (16/4/2023)

Fig. 4.9 3rd refinement - development of letters F, H and E, Week 2 (16/4/2023)

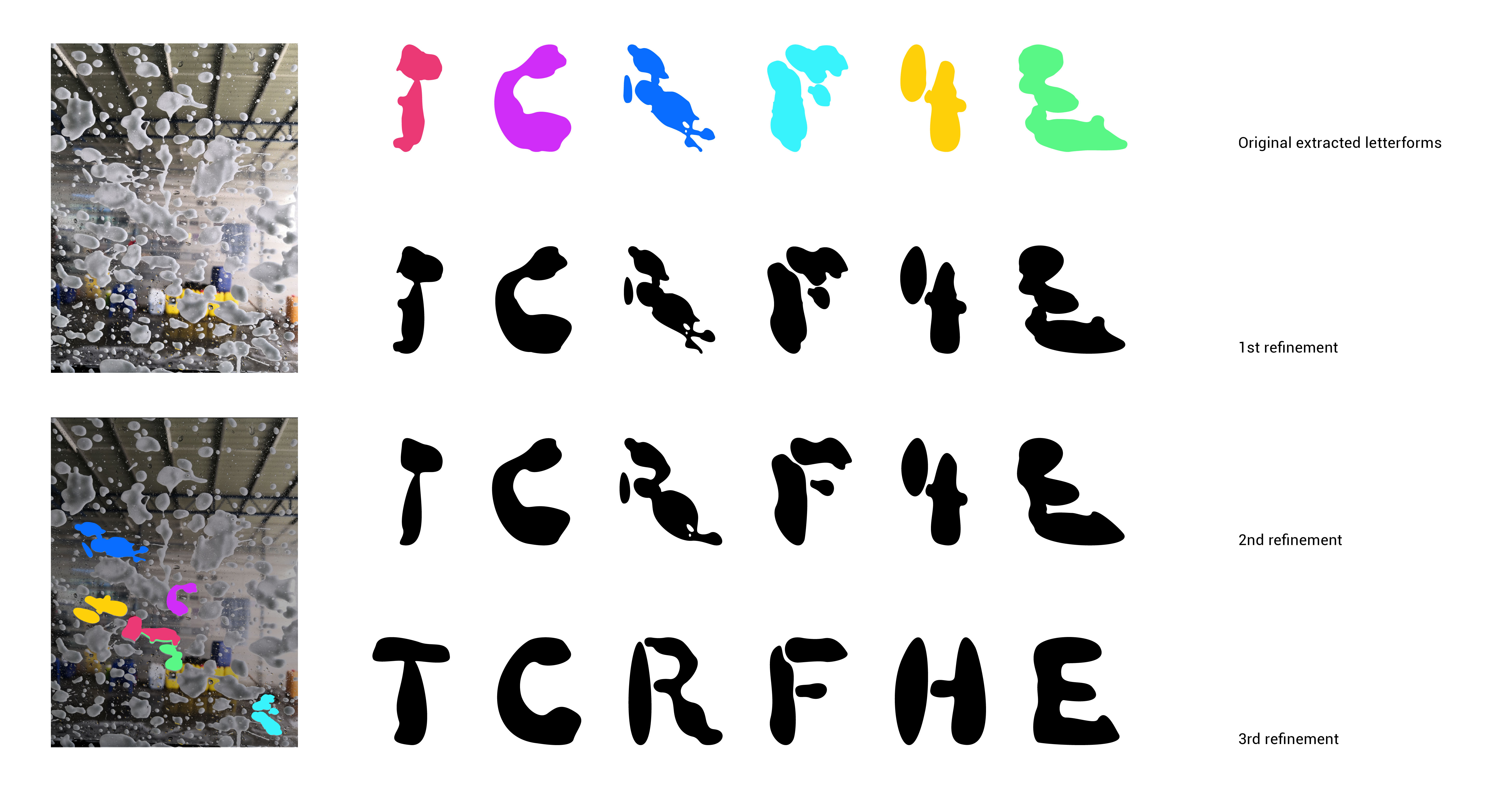

Fig. 4.10 Overall progression of refinement attempt #1 (failed attempt), Week 2 (18/4/2023)

When I showed Mr Vinod the work I had done so far, he mentioned that the letterforms no longer retained the unique characteristics of foam. As a result, I had to start the refinement process again and I considered the refinement attempt #1 as a failure.

WEEK 3

Letterforms refinement after feedback

Refinement attempt #2

To avoid losing the characteristics of foam, I looked back to the original image and observed the shape and form of foam in detail to understand its core characteristics. The identified characteristics of foam are shown in the image below:

PURPLE the small dots

BLUE curvy and fluid shapes

RED little interconnection between the foam components

Fig. 5.1 Identifying the form and shape of foam, Week 3 (19/4/2023)

I noticed that my extracted letterforms have various shapes and forms, so I decided to create consistent vertical and horizontal strokes in the letterforms.

Fig. 5.2 Refinement attempt #2 - development of letters E and C, Week 3 (19/4/2023)

In the refinement of letter E, I maintained the organic curvy edges of the letterform based on what Mr Vinod had advised. I retained the protruded foam elements in the leg on the letter E. In the letter C, the organic shapes from the original letterform are retained. To achieve consistency, I extracted the protruding foam element from the letter E and integrated it at the end of the letter C.

Fig. 5.3 Refinement attempt #2 - development of letters F and T, Week 3 (19/4/2023)

From the letter E, I derived the letter F and made adjustments to its vertical stroke. Then, I extracted the vertical stroke from the letter F as the main vertical stroke in all letterforms. In the refinement of the letter T, I first attempted to modify the horizontal stroke from the original letterform. However, the letterform turned out weird so I modified the shape of the horizontal stroke referencing the arm of the letter E but maintained the protruded foam element from its original letterform.

Fig. 5.4 Refinement attempt #2 - development of letter T, Week 3 (19/4/2023)

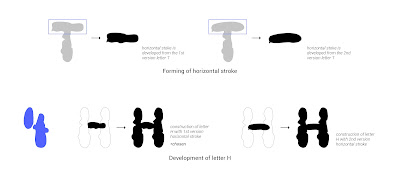

I extracted the horizontal stroke from the two versions of the refined letter T to attempt the construction of the letter H. The first version horizontal stroke has more curvy edges and it plays well with the vertical strokes of the letter H. Thus, the first version letter H is chosen as the final refined letterform.

Fig. 5.5 Overall progression of refinement attempt #2, Week 3 (23/4/2023)

Fig. 5.6 Foam characteristics in the letterforms, Week 3 (23/4/2023)

In the final outcome of my letterform refinement, some foam characteristics can be observed in the letterforms. I used the same curvy vertical strokes in the letterforms to maintain consistency. Besides, letters E, C and T consist of protruded foam elements in the letterforms. In letter C, I included the little foam dots on the top left of the letterform.

Final Task 1 - Exercise 2: Type & Play | Finding Type

Fig. 6.1 Final extracted letterforms, Week 3 (23/4/2023)

Fig. 6.2 Final letter E, Week 3 (23/4/2023)

Fig. 6.3 Final letter C, Week 3 (23/4/2023)

Fig. 6.4 Final letter F, Week 3 (23/4/2023)

Fig. 6.5 Final letter T, Week 3 (23/4/2023)

Fig. 6.6 Final letter H, Week 3 (23/4/2023)

Fig. 6.7 Final Task 1 - Exercise 2: Type & Play (Finding Type) - PDF, Week 3 (23/4/2023)

Part 2: Type and Image

WEEK 3

For this task, we are to combine the final extracted letterforms with a relevant image of the original subject from which we obtained the letterforms. The objective is to enhance the interplay between the letterforms and the selected image. The text must be woven into a symbiotic relationship with the image. The size resolution of the final outcome should be 1024 x 1024 px in 300 dpi.

I selected an image of splashing foam that is sourced from Unsplash.

Fig. 7.1 Chosen image (Source: Unsplash), Week 3 (24/4/2023)

To integrate the letters into the image, I observed the foam's structure and determined an appropriate placement for each letter.

Fig. 7.2 Identifying the structure and position of foam, Week 3 (24/4/2023)

Next, I applied the preset Inflate 3D effect to each letterform in Adobe Illustrator to create a foam texture for the letterforms.

Fig. 7.3 Letterforms with Inflate 3D effect, Week 3 (24/4/2023)

Before integrating each 3D letter into the image, I examined the direction of the shadows of the foam. Then, I modified the rotation settings of the 3D letters to correspond with the observed direction of shadows.

Fig. 7.4 Adjusting the rotation settings, Week 3 (24/4/2023)

I inserted the 3D letters into Photoshop for letter integration. To integrate the letters, I soften the edges of the letters to match the texture of the foam by using the Eraser tool and Brush tool to achieve the desired outcome.

Fig. 7.5 Placing the 3D letters into PS, Week 3 (24/4/2023)

Fig. 7.6 Soften the edges of the letter C, Week 3 (24/4/2023)

Fig. 7.7 Attempt #1, Week 3 (24/4/2023)

WEEK 4

After receiving feedback from Mr Vinod, I added some highlights to the letters to enhance the appearance of the 3D letters. I first added a little off-white to the bright areas of the letters. Then, I used a pure white colour to add the highlights to the letters.

Fig. 8.1 Original letter T without highlight (left); Letter T with a little off-white (right), Week 4 (27/4/2023)

Fig. 8.2 Adding highlights to the letters, Week 4 (26/4/2023)

Fig. 8.3 Attempt #2, Week 4 (26/4/2023)

Fig. 8.4 is the comparison between the original image, attempt #1 and attempt #2.

Fig. 8.4 Original image (left); Attempt #1 (middle); Attempt #2 (right), Week 4 (26/4/2023)

Final Task 1 - Exercise 2: Type & Play | Type and Image

Fig. 9.1 Final Task 1 - Exercise 2: Type & Play (Type and Image) - JPEG, Week 7 (17/5/2023)

Fig. 9.2 Final Task 1 - Exercise 2: Type & Play (Type and Image) - PDF, Week 7 (17/5/2023)

TO THE TOP ↑

FEEDBACK

WEEK 1

Exercise 1: Typographic Systems (Fig. 1.0 Practical attempts)

General feedback

Mr Vinod commented that three of the layouts work but the layouts are monotonous as he mentioned in previous students' work.

WEEK 2

Exercise 1: Typographic Systems

Week 1 Layouts

General Feedback

Mr Vinod commented on our classmates' work and mentioned spacing, alignment and eye flow. Spacing between lines of text or groups of text should be consistent to avoid randomness. For alignment, each line of text or each group to text should be aligned to a certain object or guide to gain balance. Eye flow is very important in visual communication. We should create a sequence for viewers to obtain the information in order and get all the information. To grab viewers' attention, we might have big text in a layout and graphical elements but avoid placing them in the corner as it will take the viewers' attention out of the layout. Also, avoid too many graphical elements that will grab away viewers' attention and not focus on the typographic elements.

Specific Feedback

The layout works. No issue (Axial, Dilatational, Random). Try to make the radial curve smoother and move the dot to another place to avoid dragging attention away from the paper (Radial). Too much graphical elements (Transitional). This is not a bilateral system (Bilateral).

Classmates' Feedback

LT12 aligning to the open public lectures, is kind of confusing, affecting the reading sequence to be “open public LT12 lectures” (Axial). The font size of the content is quite small (Dilatational). The letter “B” is not apparent, people might misread it as “cauhaus” (Random). Too much graphical elements (Transitional).

WEEK 3

Exercise 2: Type & Play - Finding Type (Fig. 4.10 Refinement attempt #1)

Specific feedback

The refinement of my letterforms has gone the characteristics of foam. Not necessarily to refine purely from the original letterforms. I have to observe and understand the shapes and forms of foam to identify its core characteristics. Once the core characteristics are identified, I can just build the letterforms based on them. When creating the letterforms, I have to make sure the letterforms are fluid in shape and I may include some soapy dots in certain parts of the letter. After redoing the refinement of the letterforms "E" and "C", Mr Vinod commented that I got in the right direction.

WEEK 4

Exercise 2: Type & Play - Type and Image

Specific feedback

The refinement of letterforms has no issue. The curves and properties of the foam are incorporated into the letterforms (Fig. 5.5 Refinement attempt #2). The letters are well-integrated into the image. The only necessary adjustment is to add some highlights to the 3D letters to make them consistent with how light and shadows behave in the real world (Fig. 7.7 Type and Image attempt #1).

TO THE TOP ↑

REFLECTION

Experience

During Exercise 1, we had the opportunity to experiment with typographic systems beyond the grid system, using one additional color besides black, white, and grey. It was interesting to manipulate the text, nonobjective elements, and color within the given space. However, I encountered difficulties creating a balanced layout for the modular system. In Exercise 2, I worked with foam and explored its shape, form, and texture. I also created 3D foam letters and integrated them into the foam image. I enjoyed playing around with foam and exploring its possibilities in Exercise 2.

Observations

After studying the eight typographic systems, I noticed that all compositions should follow grids and guides to achieve effective visual communication. By changing the placement of nonobjective elements, we can create various effects, such as tension, balance, and emphasis. When constructing letterforms with foam, I was inconfident about my letterforms, worrying that they might not reflect the characteristics of foam.

Findings

What we have learnt from the previous lectures and tasks is very useful and applicable to Task 1 Exercises. Text formatting is crucial in typographic layout design, while the letterform construction techniques and principles acquired from previous tasks helped me in creating the foam letters. In Exercise 2, it is essential to closely observe the chosen subject, identifying potential letterforms and understanding its core characteristics.

Upon the two exercises in this task, I realised that planning and time management are essential in completing tasks effectively. For example, I could have created sketches for modular system layouts instead of aimlessly experimenting with different layouts in Adobe InDesign.

TO THE TOP ↑
